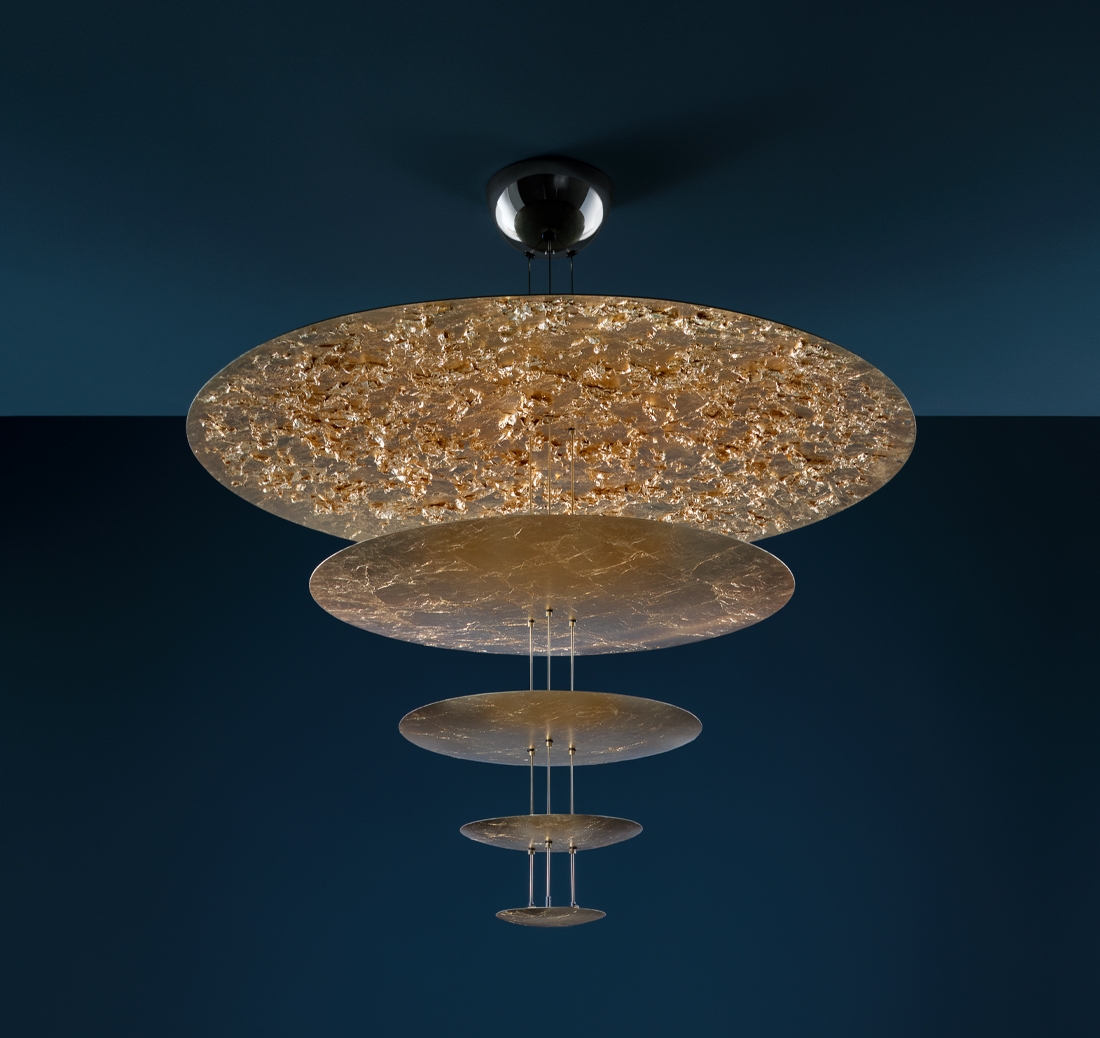

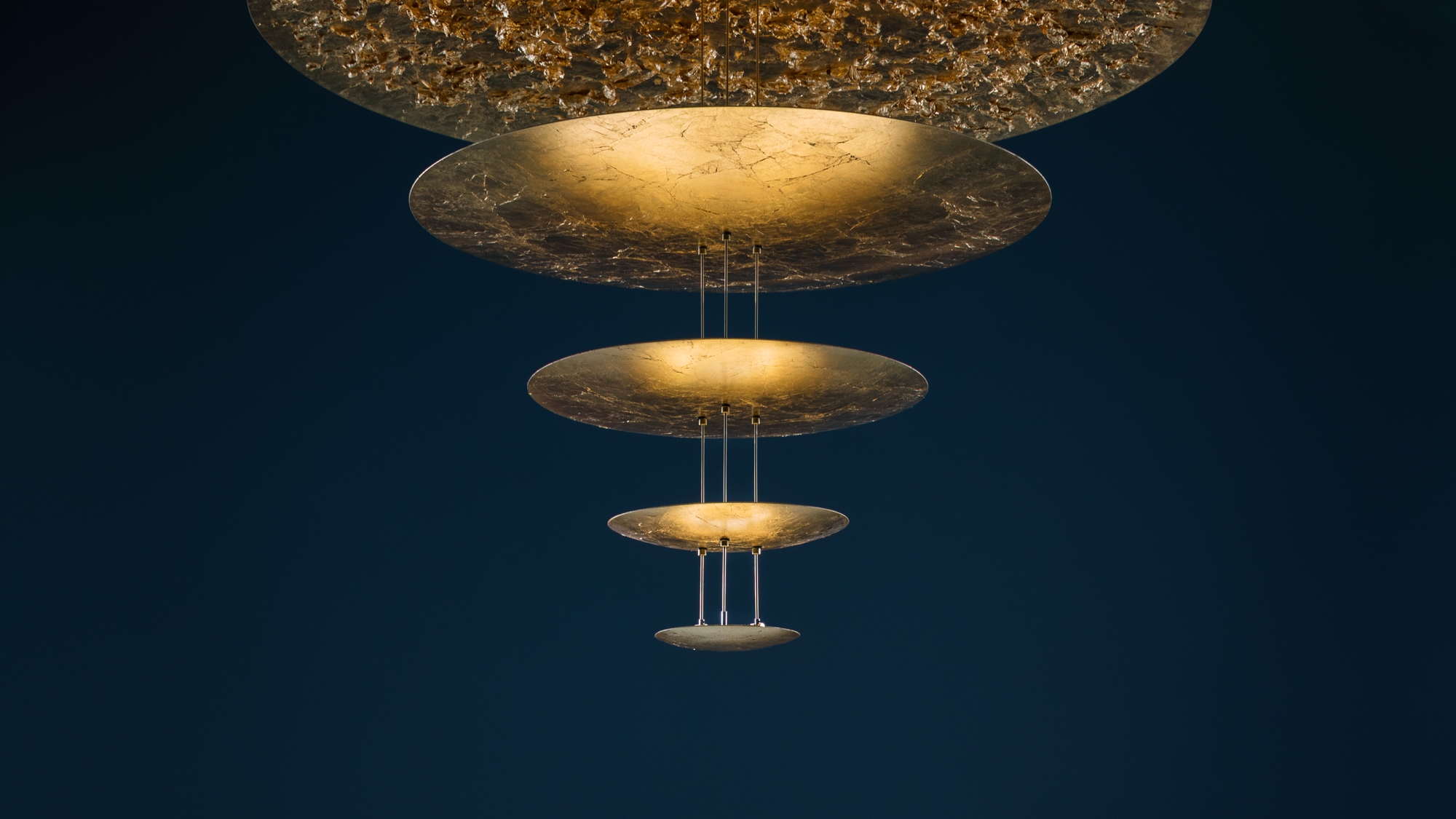

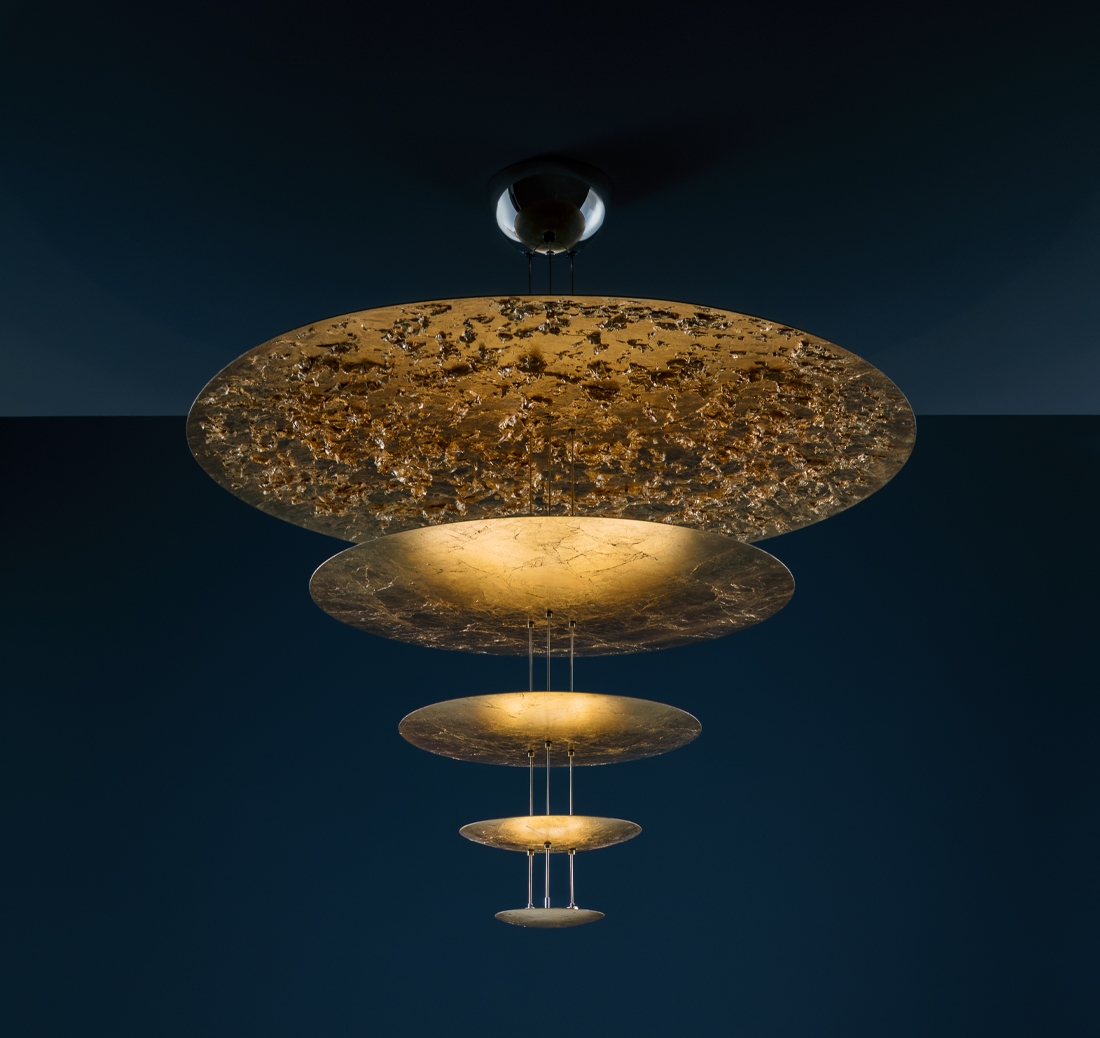

Macchina della Luce
Macchina della Luce emerged from the Luci d’Oro collection, and was also developed after reflecting on the colour of light: the golden light of the sun and fire; warm light, in which the concept of refraction began to take shape in Enzo Catellani’s mind and which he used later in other creations.
See other images
Datasheet
Available versions
Type
pendant lamp
Materials
diffuser discs lined with leaf (disc Ø 120 cm with flying leaf), brass or aluminium rods, nickel base
Light source
mod. A / LED board 24Vdc 7x5,8W / rated output 40,6W / energy class E / lumen 5040 / K 2700 / CRI 80
mod. B / LED board 24Vdc 2x5,8W / rated output 11,6W / energy class E / lumen 1440 / K 2700 / CRI 80
mod. C / LED board 24Vdc 7x5,8W / rated output 40,6W / energy class E / lumen 5040 / K 2700 / CRI 80
mod. D / LED board 24Vdc 10x5,8W / rated output 58W / energy class E / lumen 7200 / K 2700 / CRI 80
mod. E / LED board 24Vdc 4x5,8W / rated output 23,2W / energy class E / lumen 2880 / K 2700 / CRI 80
mod. F / LED board 24Vdc 9x5,8W / rated output 52,2W / energy class E / lumen 6480 / K 2700 / CRI 80
mod. I / LED board 24Vdc 5x5,8W / rated output 29W / energy class E / lumen 3600 / K 2700 / CRI 80
EPREL registered light source, click here
mod. B / LED board 24Vdc 2x5,8W / rated output 11,6W / energy class E / lumen 1440 / K 2700 / CRI 80
mod. C / LED board 24Vdc 7x5,8W / rated output 40,6W / energy class E / lumen 5040 / K 2700 / CRI 80
mod. D / LED board 24Vdc 10x5,8W / rated output 58W / energy class E / lumen 7200 / K 2700 / CRI 80
mod. E / LED board 24Vdc 4x5,8W / rated output 23,2W / energy class E / lumen 2880 / K 2700 / CRI 80
mod. F / LED board 24Vdc 9x5,8W / rated output 52,2W / energy class E / lumen 6480 / K 2700 / CRI 80
mod. I / LED board 24Vdc 5x5,8W / rated output 29W / energy class E / lumen 3600 / K 2700 / CRI 80
EPREL registered light source, click here
Power supply
driver 24Vdc 220-240V dimmable Triac (dimmable 1...10V or DALI version available on request)
(110V available on request)
(110V available on request)
Dimensions
base Ø 21×10,5 H cm
rods H 145 cm variable (on request 300 cm)
mod. D discs
Ø 120-80-50-30-18 cm
weight 16 kg
mod. A
discs Ø 80-50-30-18 cm
weight 10 kg
—
mod. B
discs Ø 80-18 cm
weight 6 kg
—
mod. C
discs Ø 120-80-50 cm
weight 13 kg
mod. E
discs Ø 50-30-18 cm
weight 6 kg
—
mod. F
discs Ø 120-80-50-30 cm
weight 15 kg
—
mod. I
discs Ø 80-50-30 cm
weight 8 kg
Order code mod. A
MALG
gold
MALS
silver
MALC
copper
Order code mod. B
MBLG
gold (brass rods)
MBLS
silver (aluminium rods)
MBLC
copper (brass rods)
Order code mod. C
MCLG
gold (brass rods)
MCLS
silver (aluminium rods)
MCLC
copper (brass rods)
Order code mod. D
MDLG
gold (brass rods)
MDLS
silver (aluminium rods)
MDLC
copper (brass rods)
Order code mod. E
MELG
gold (brass rods)
MELS
silver (aluminium rods)
MELC
copper (brass rods)
Order code mod. F
MFLG
gold (brass rods)
MFLS
silver (aluminium rods)
MFLC
copper (brass rods)
Order code mod. I
MILG
gold (brass rods)
MILS
silver (aluminium rods)
MILC
copper (brass rods)
Download
BIM/CAD
