Macchina della Luce D catellani

Macchina della Luce



catellani & smith macchina della luce
La lumière

Les origines

Macchina della Luce émerge de la collection Luci d’Oro, qui est née elle aussi en tant que réflexion sur la couleur de la lumière : la lumière dorée du soleil, du feu ; des lumières chaudes, où le concept de réfraction commence à prendre forme dans l’esprit d’Enzo Catellani, qui l’appliquera souvent à d’autres créations.

The basic rule that I’ve set for everything I do and that I’ve instilled in my collaborators is to put your heart and soul into what you’re doing.

Enzo Catellani

Comment nait

Whatever is worth doing at all is worth doing well.

Lord Chesterfield


Regardez les détails

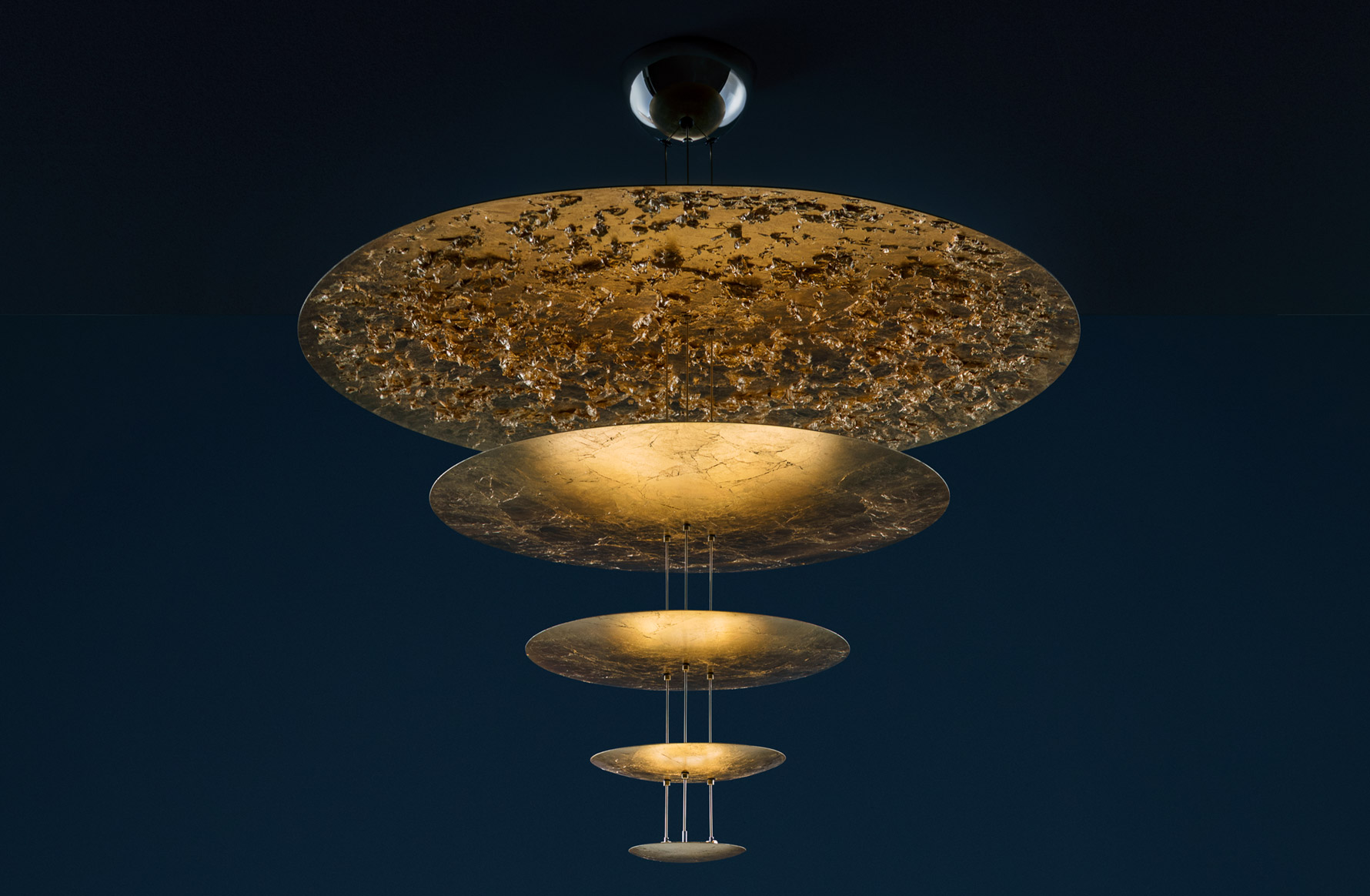

Macchina della Luce D catellani
Cliquez ici pour explorer Glisser-déposer
Fermez

Variantes disponibles

  • feuille couleur or
  • feuille couleur cuivre
  • feuille couleur argent

Fiche technique

Materials

diffuser discs lined with leaf (disc Ø 120 cm with flying leaf), brass or aluminium rods, nickel base

Light source

mod. A
LED board 24V DC / 7x6W / energy class A+ / lumen 4410 / K range 2600-2800 / CRI 80

mod. B
LED board 24V DC / 2x6W / energy class A+ / lumen 1260 / K range 2600-2800 / CRI 80

mod. C
LED board 24V DC / 7x6W / energy class A+ / lumen 4410 / K range 2600-2800 / CRI 80

mod. D
LED board 24V DC / 10x6W / energy class A+ / lumen 6300 / K range 2600-2800 / CRI 80

mod. E
LED board 24V DC / 4x6W / energy class A+ / lumen 2520 / K range 2600-2800 / CRI 80

mod. F
LED board 24V DC / 9x6W / energy class A+ / lumen 5670 / K range 2600-2800 / CRI 80

mod. I
LED board 24V DC / 5x6W / energy class A+ / lumen 3150 / K range 2600-2800 / CRI 80

Power supply

low voltage driver 24V DC 220-240V dimmable Triac (dimmable 1...10V or DALI version available on request)

(110V available on request)

Dimensions

base Ø 21×10,5 H cm
rods H 145 cm variable (on request 300 cm)

mod. D discs
Ø 120-80-50-30-18 cm
weight 16 kg

mod. A
discs Ø 80-50-30-18 cm
weight 10 kg

mod. B
discs Ø 80-18 cm
weight 6 kg

mod. C
discs Ø 120-80-50 cm
weight 13 kg

efimod. E
discs Ø 50-30-18 cm
weight 6 kg

mod. F
discs Ø 120-80-50-30 cm
weight 15 kg

mod. I
discs Ø 80-50-30 cm
weight 8 kg

Order code mod. A

MALGgold (brass rods)
MALSsilver (aluminium rods)
MALCcopper (brass rods)

Order code mod. B

MBLGgold (brass rods)
MBLSsilver (aluminium rods)
MBLCcopper (brass rods)

Order code mod. C

MCLGgold (brass rods)
MCLSsilver (aluminium rods)
MCLCcopper (brass rods)

Order code mod. D

MDLGgold (brass rods)
MDLSsilver (aluminium rods)
MDLCcopper (brass rods)

Order code mod. E

MELGgold (brass rods)
MELSsilver (aluminium rods)
MELCcopper (brass rods)

Order code mod. F

MFLGgold (brass rods)
MFLSsilver (aluminium rods)
MFLCcopper (brass rods)

Order code mod. I

MILGgold (brass rods)
MILSsilver (aluminium rods)
MILCcopper (brass rods)
