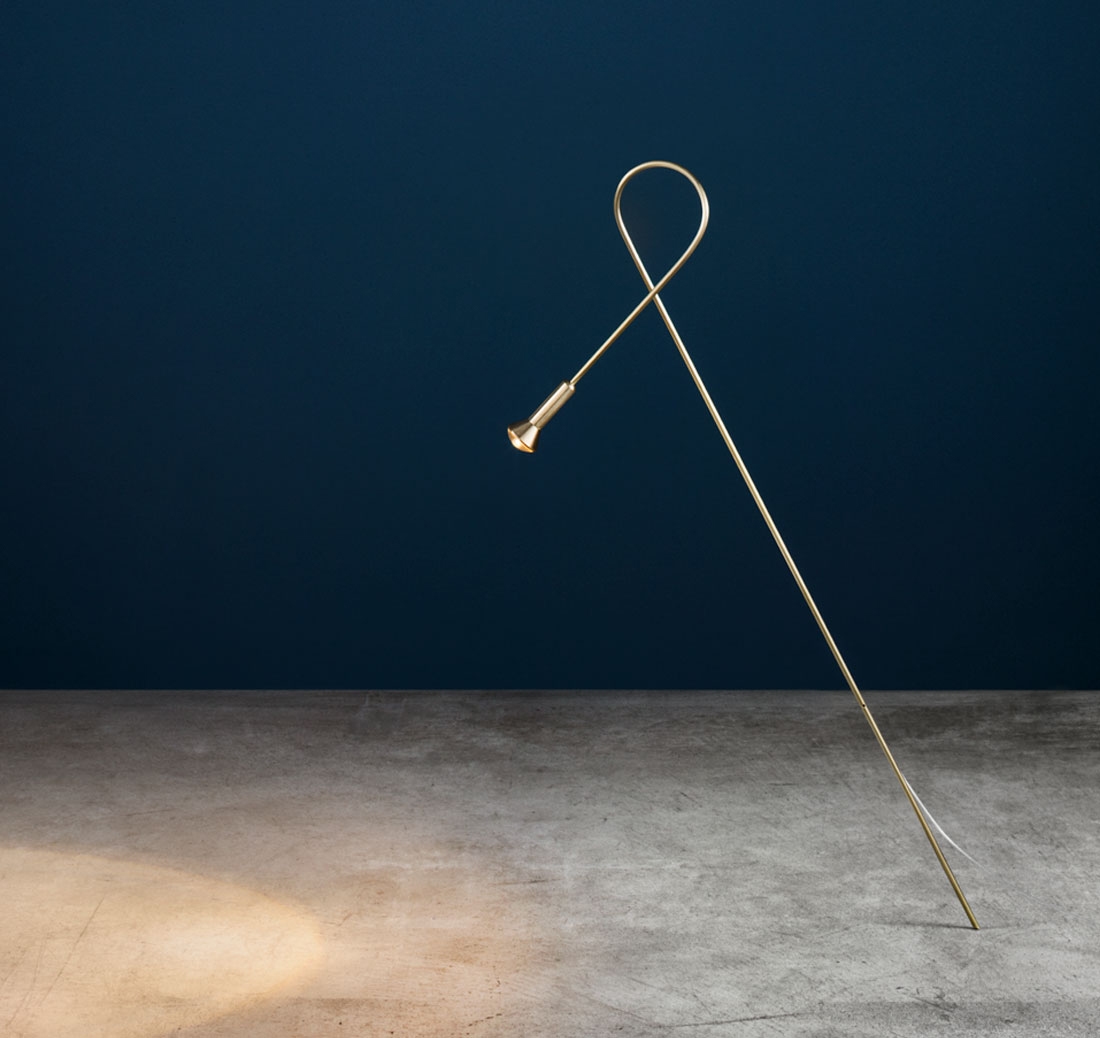

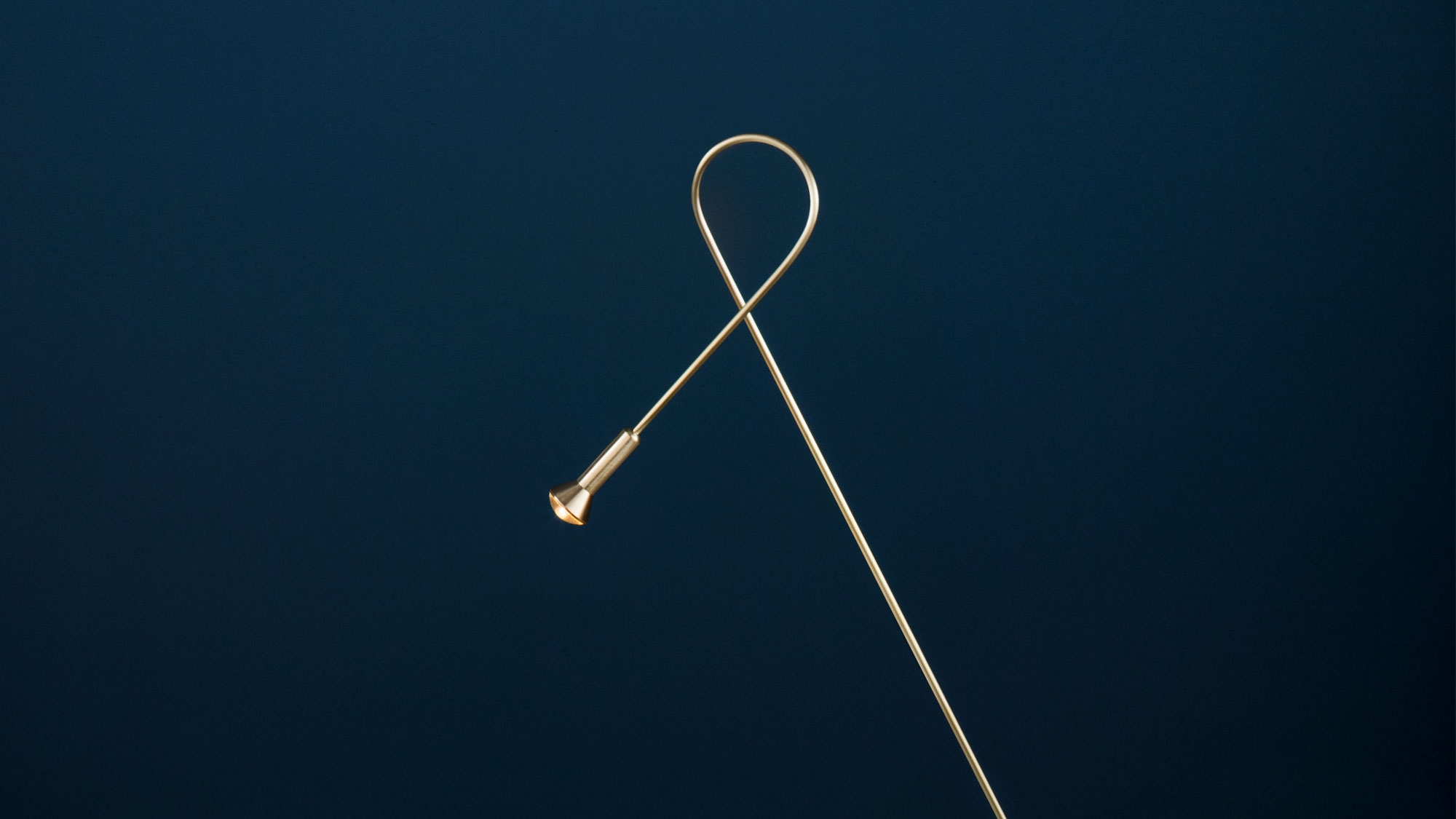

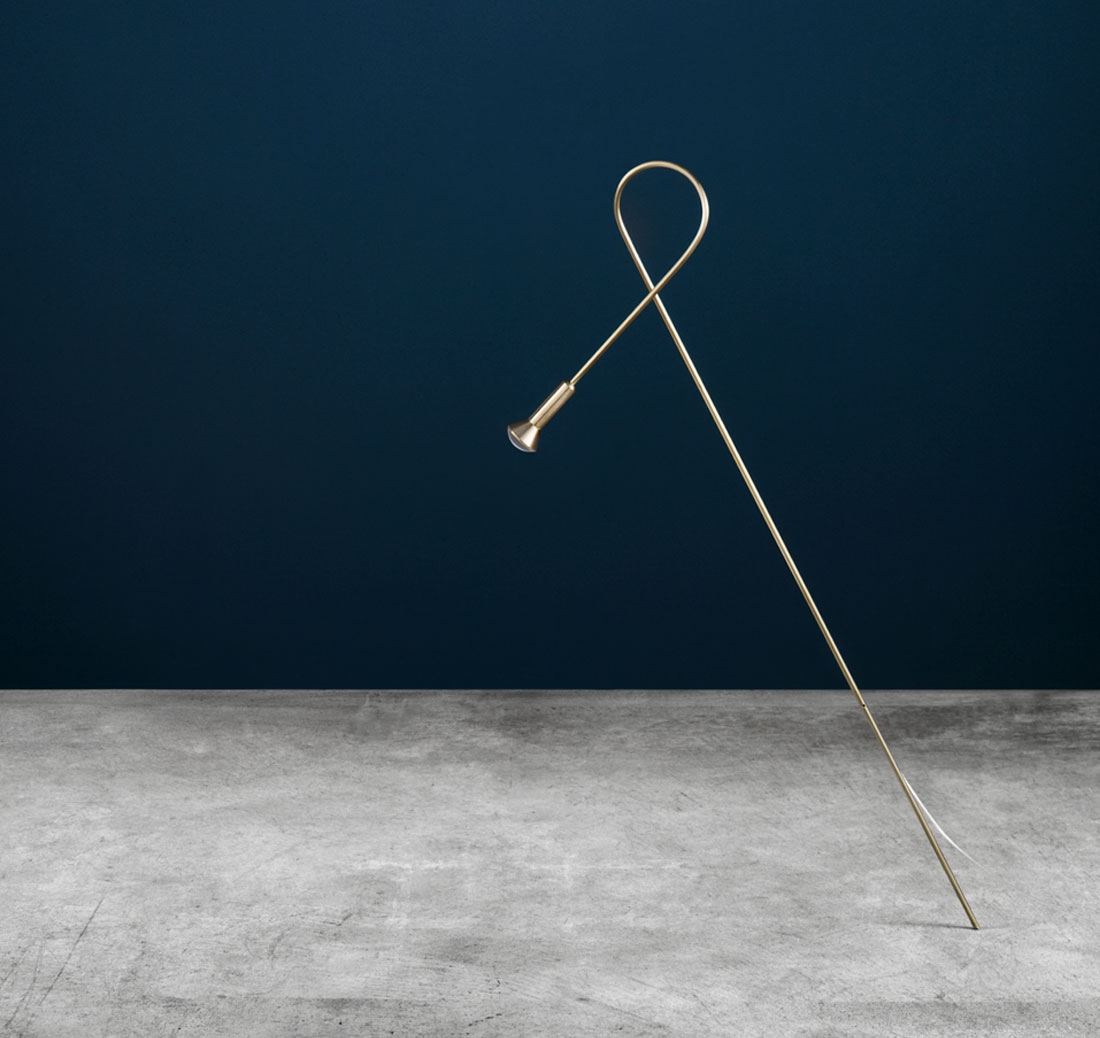

Syphaduepassi

Die Ursprünge
Enzo Catellani hat für Catellani & Smith seine erste Outdoor Kollektion geschaffen und reagiert damit auf den Trend, den Wohnbereich auf Terrassen und Gärten zu erweitern. Das Hauptziel von Enzo Catellani war es, die Leuchten für den Innenbereich nach Außen zu transportieren. Lichter für Außen, die in der Lage sind, die gleiche Atmosphäre und die gleiche Wärme wie Innenraumleuchten zu schaffen. Im Mittelpunkt steht das Glas. So entstehen Syphasera, Syphasfera (die in Zusammenarbeit mit Architekt Maurizio Quargnale entwickelt wurden) und Syphaduepassi, einfache Formen, die mit ihrer natürlichen Umgebung harmonieren, als wären sie ein integrierender Teil davon und kein künstliches Element.
The basic rule that I’ve set for everything I do and that I’ve instilled in my collaborators is to put your heart and soul into what you’re doing.
Wie es gemacht wird
I can’t believe what I’ve done so far... It looks like a miracle.
Details

Verfügbare Varianten
- unbehandeltes messing
Technische Datenblatt
Materials and colours
NOTE: the stems of the Syphaduepassi are made of brass protected for outdoor use, but not immersion proof. On request we can supply stems suitable for this kind of installation into water.
Light source
NOTE: IP specifics - lamp holder IP65 (not protected against immersion); wires and connectors IP68; drivers IP67; IP average rate of the lamp 44.
Power supply
Dimensions
H tot. 45 cm, cable 225 cm
H tot. 75 cm, cable 195 cm
Order code
SYD45 | H 45 cm |
SYD75 | H 75 cm |
Accessories for gel box system
ED6 | driver 10W 12V DC 220-240V IP67 not dimmable (max 6 lamps) |
MB1 | mini gel box IP68 (max 2 connections, connector included) |
MB2 | mini gel box IP68 (max 6 connections, connector included) |
KP1 | extension kit 5 mt with mini gel box IP68 (max 1 lamp) |
Accessories for quick connectors system
ED6CR | driver 10W 12V DC 220-240V IP67 not dimmable with quick connectors (max 6 lamps) |
CRM | multiple quick connector IP68 - 1 IN & 5 OUT (max 5 connections) |
CRS | single quick connector IN IP68 |
KP2 | extension kit 5 mt with quick connectors IP68 (max 1 lamp) |
