Syphasfera

Syphasfera



catellani outdoor
Switch on The light

The origins

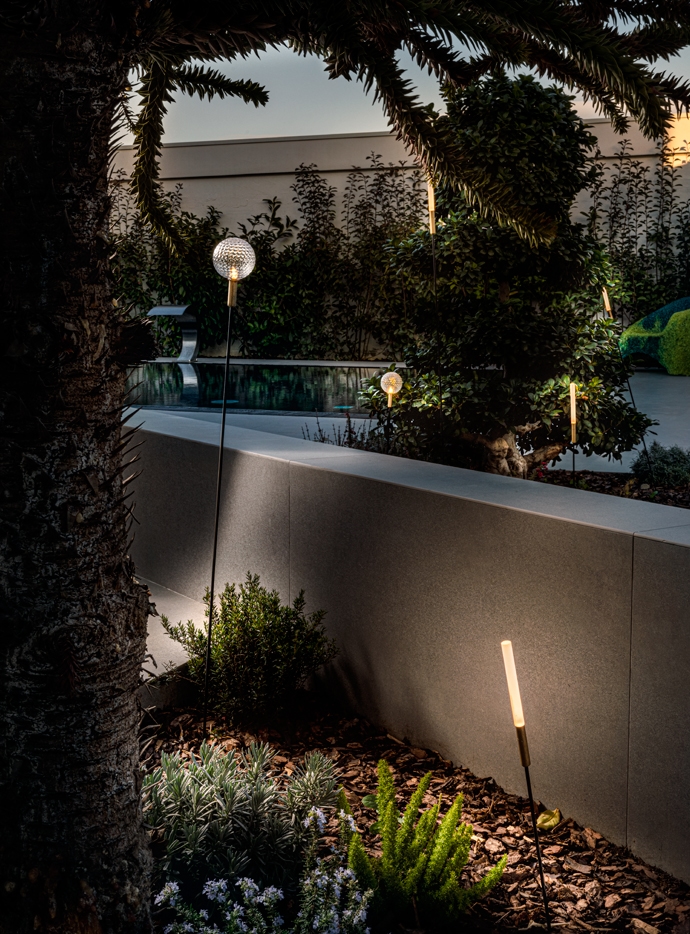

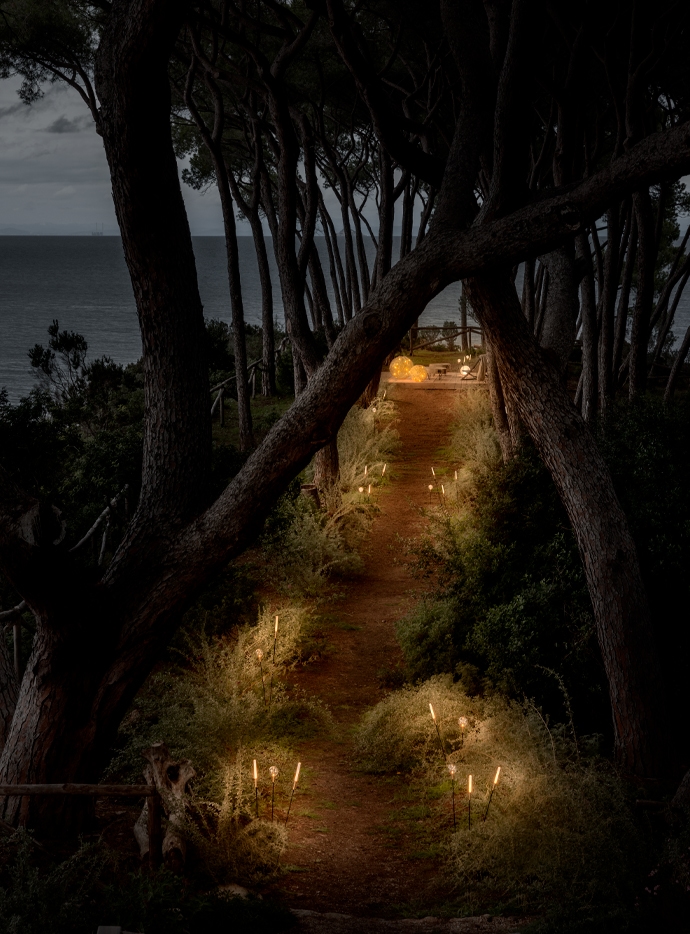

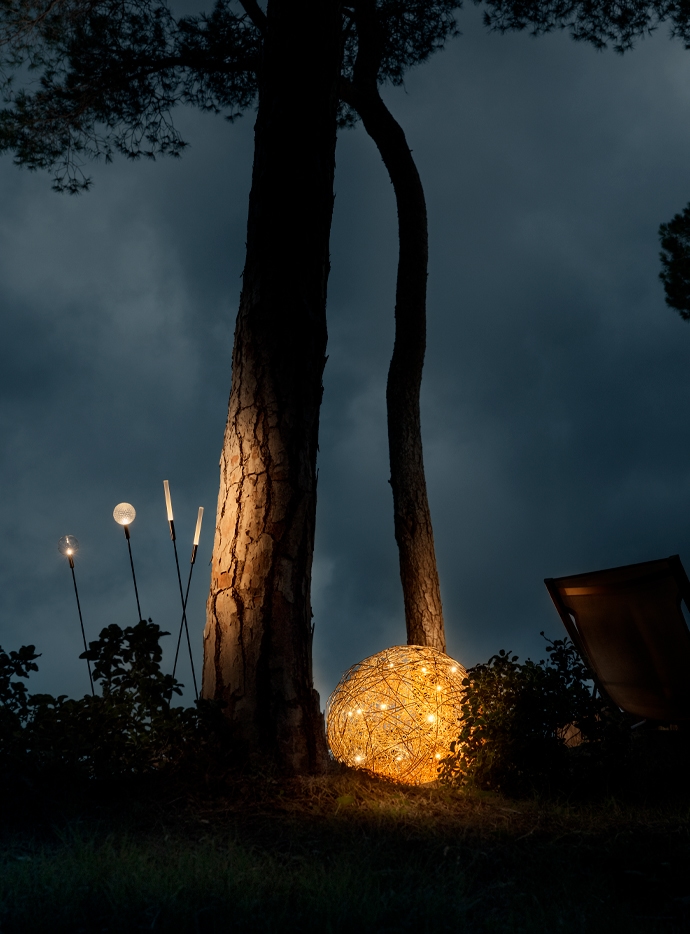

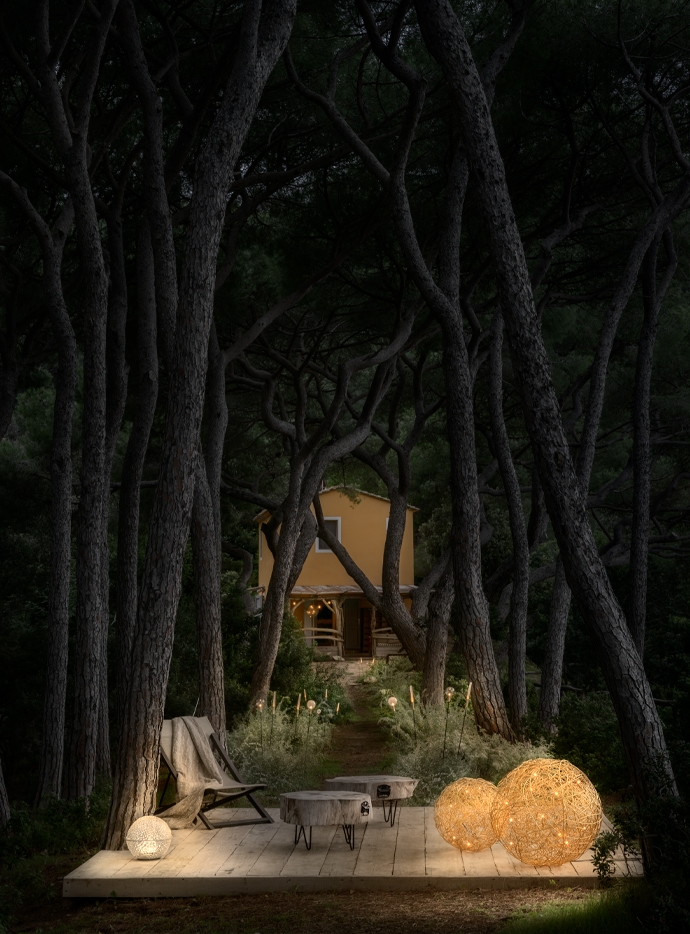

Enzo Catellani has designed his first collection of outdoor lights for Catellani & Smith in response to the trend that, over the years, has seen living spaces move outside into terraces and gardens, creating extensions of the house. Enzo Catellani’s main goal was to create a collection of indoor lamps suitable for outdoor installation; lighting fixtures created for the outside, but able to recreate the same warmth and atmosphere as indoor lights. Glass plays a starring role in this collection. This is how were developed Syphasera, Syphasfera –  both lamps created by the designer Maurizio Quargnale in cooperation with Catellani & Smith – and Syphaduepassi, which, thanks to their minimal design, integrate perfectly with the surrounding environment, as if they were part of nature itself.

It is not difficult to find something in this world that can be manufactured slightly worse and sold at a lower cost. The true victim of this situation is he who considers only the price.

John Ruskin

The making of

When I live by what I thought the day before, I will start fearing him, who copies from me.

Fortunato Depero


More details

lampade design
Close
Click and explore Drag and explore

Available versions

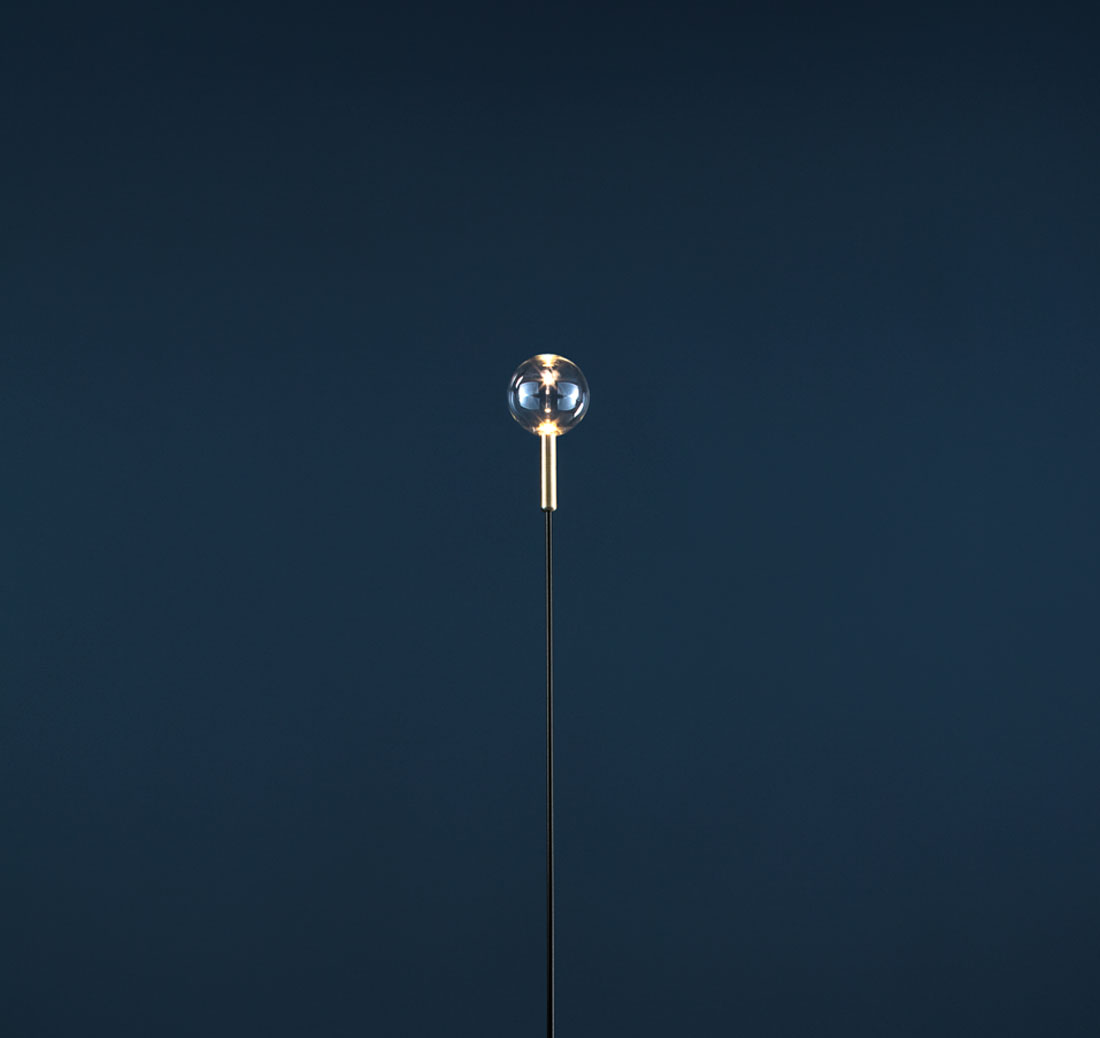

  • glass

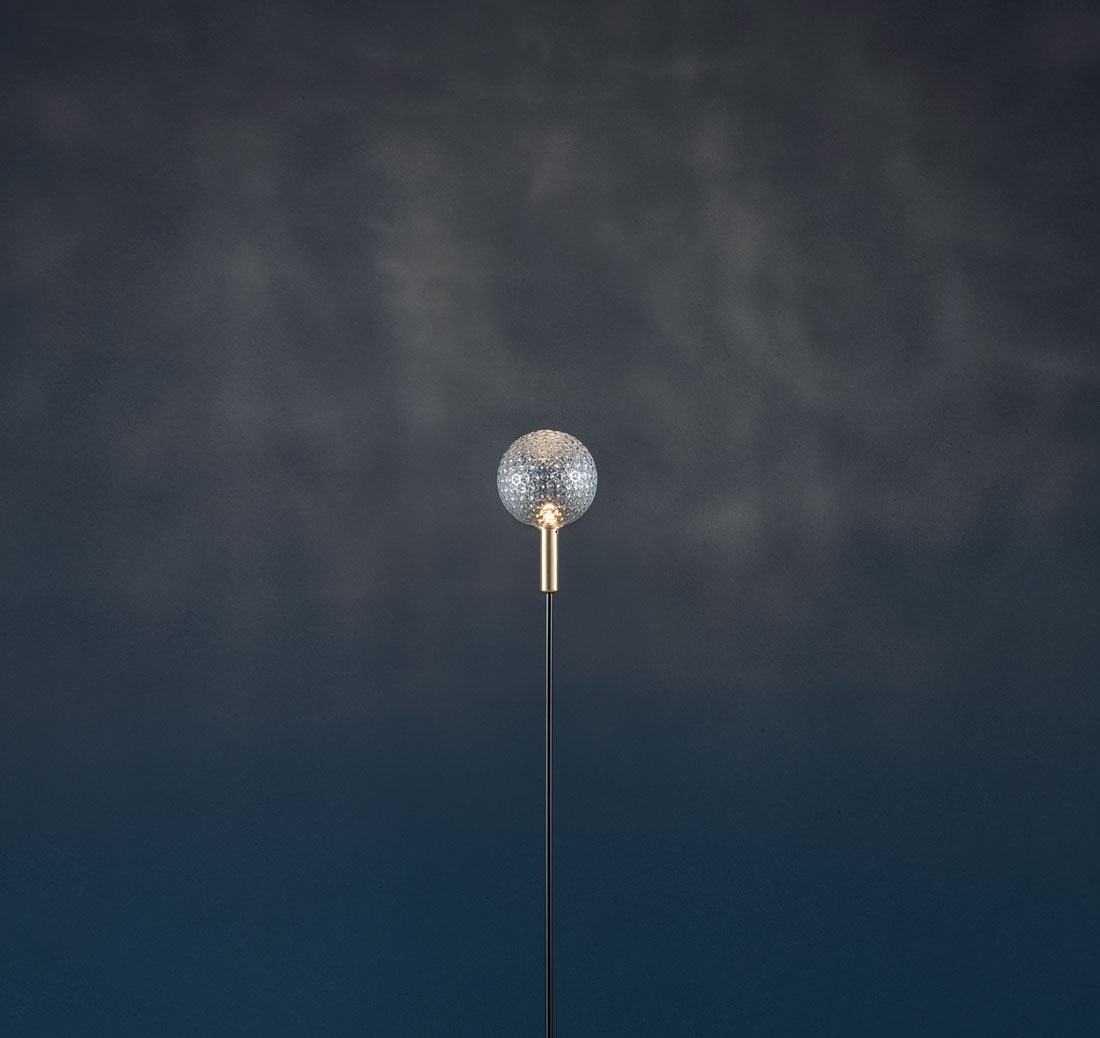

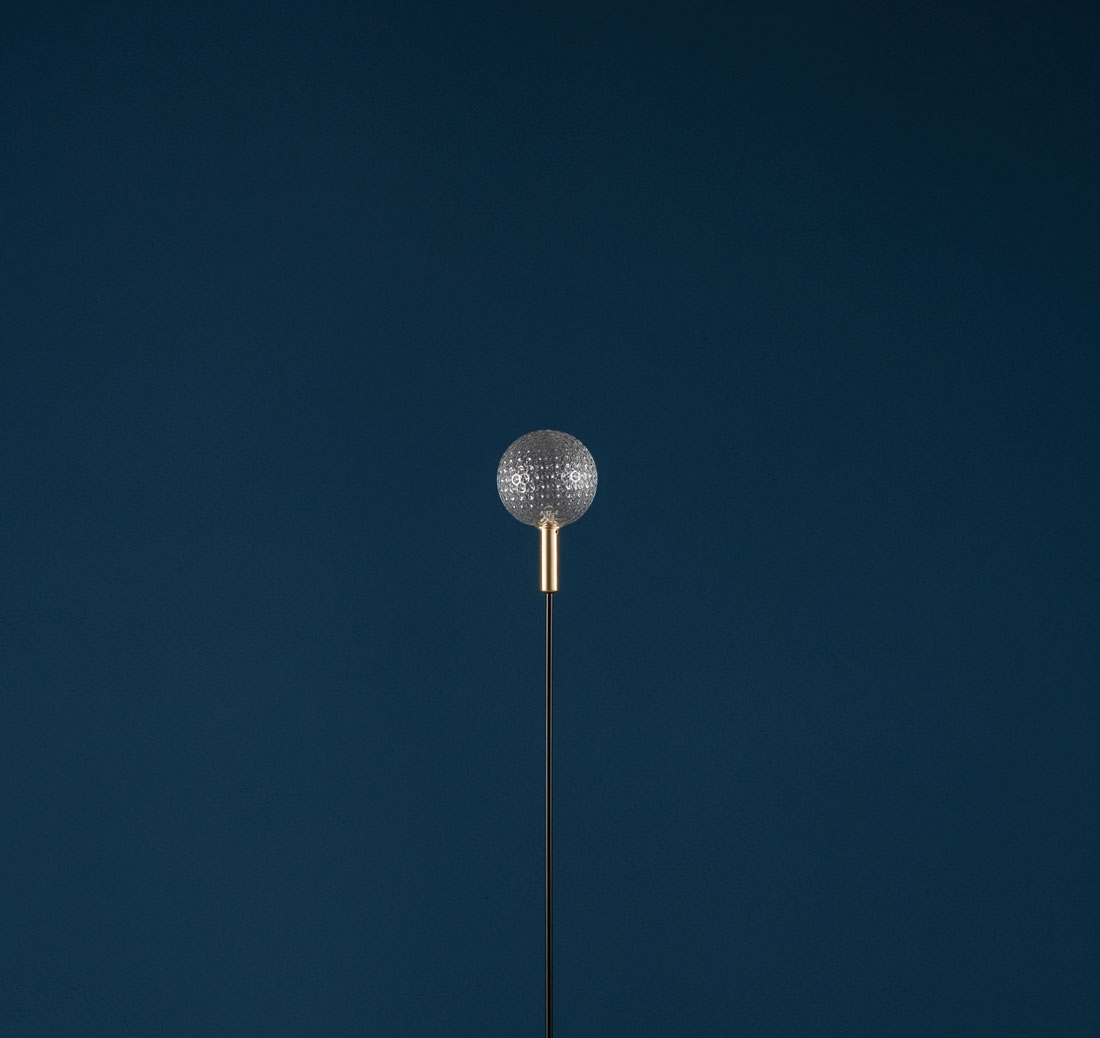

  • irregular glass

Datasheet

Materials

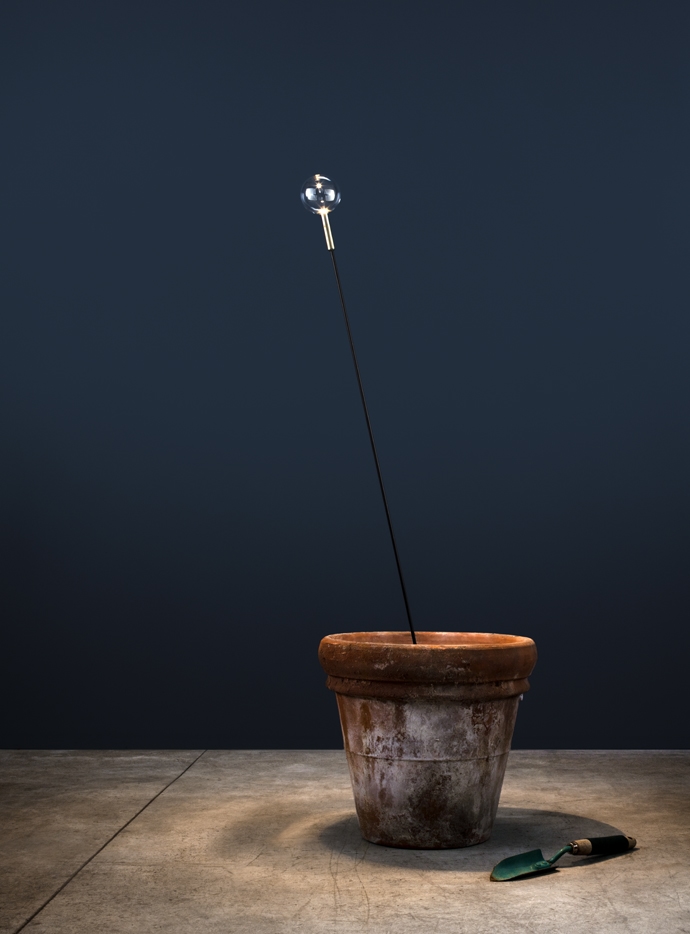

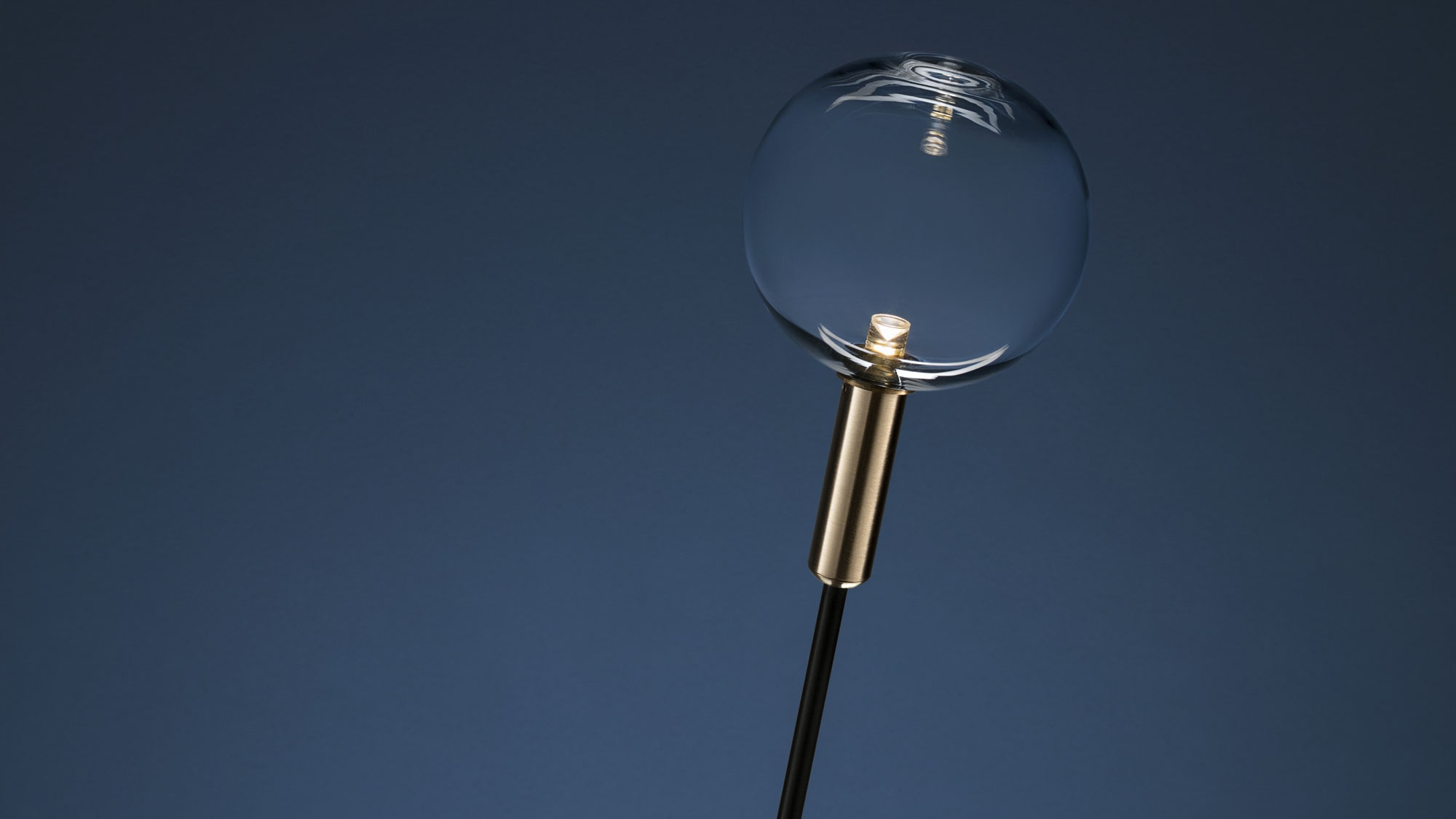

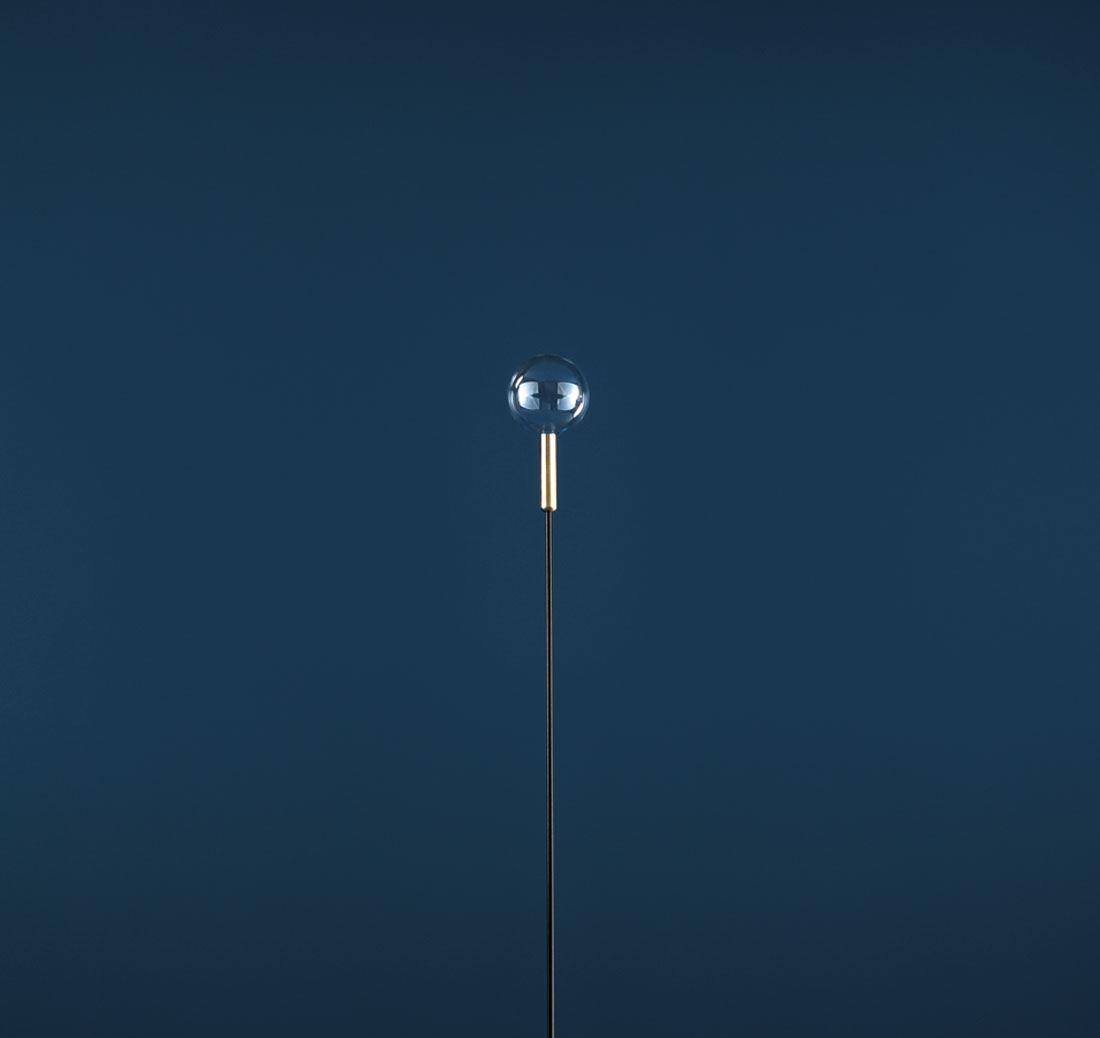

transparent or irregular glass sphere with black varnished brass stem and brass details

NOTE: the stems of the Syphasfera collection are made of brass protected for outdoor with black coloured varnish. They are suitable for outdoor use included immersion. Nevertheless, in case of installation into water, we recommend a version available on request designed for this kind of projects and requests.

Light source

LED bulb G4 12V DC 1x1W / energy class G / lumen 75 / K 2700 / CRI 80 / protection grade IP65

NOTE: IP specifics - lamp holder IP65 (not protected against immersion); wires and connectors IP68; drivers IP67; IP average rate of the lamp 44.

Power supply

12V DC transformer not included

Dimensions

sphere Ø 8 cm
H tot. 60 cm (cable 255 cm)
H tot. 75 cm (cable 240 cm)
H tot. 105 cm (cable 210 cm)
H tot. 135 cm (cable 180 cm)

Order code

SYF60H 60 cm / glass
SYF60IH 60 cm / irregular glass
SYF75H 75 cm / glass
SYF75IH 75 cm / irregular glass
SYF105H 105 cm / glass
SYF105IH 105 cm / irregular glass
SYF135H 135 cm / glass
SYF135IH 135 cm / irregular glass

Accessories for gel box system

ED6driver 10W 12V DC 220-240V IP67 not dimmable (max 6 lamps)
MB1mini gel box IP68 (max 2 connections, connector included)
MB2mini gel box IP68 (max 6 connections, connector included)
KP1extension kit 5 mt with mini gel box IP68 (max 1 lamp)

Accessories for quick connectors system

ED6CRdriver 10W 12V DC 220-240V IP67 not dimmable with quick connectors (max 6 lamps)
CRMmultiple quick connector IP68 - 1 IN & 5 OUT (max 5 connections)
CRSsingle quick connector IN IP68
KP2extension kit 5 mt with quick connectors IP68 (max 1 lamp)
